eFarmer Electric Tractor
The 30 HP diesel-equivalent eFarmer provides unparalleled visibility and maneuverability for the next generation of row-crop farming.
Runtime
4-8 hours with 28 kWh battery pack, depending on load. Runtime can be extended with optional exchangeable battery packs.
Charging
3 hour quick charge for one pack, or an overnight slow charge for 2 packs. Battery management system (BMS) automatically protects the batteries during charging and discharging.

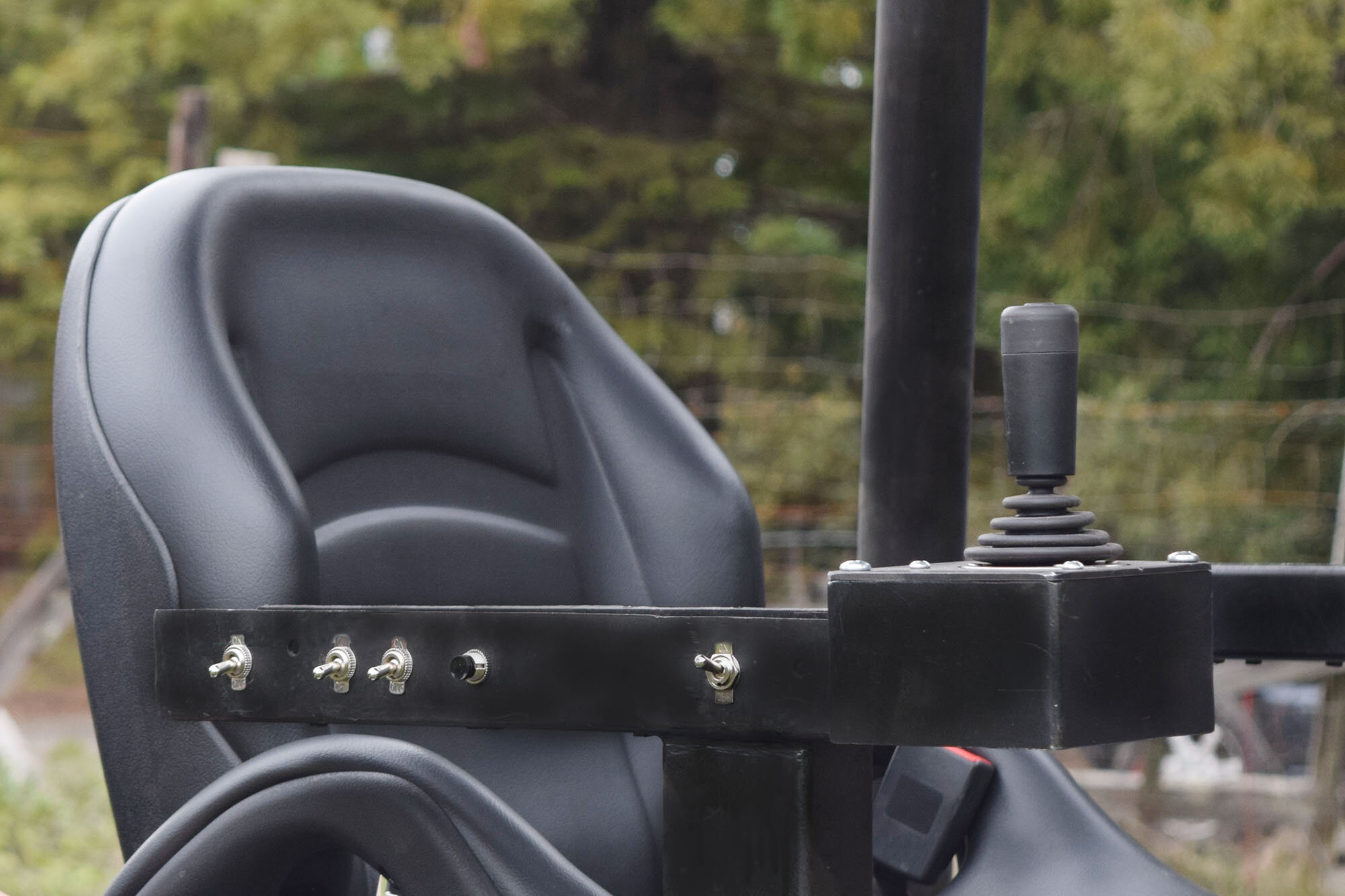

Steering/Speed
A simple joystick controls steering and speed, which allows for easy navigation between row crops. Rates of speed are variable and controlled by joystick position.
3 Point Hitch/Implements
Includes front hitch for low lift loader or reaper, mid hitch for precision cultivation tools and rear hitch that accepts all Category 1 - 540 RPM -PTO implements

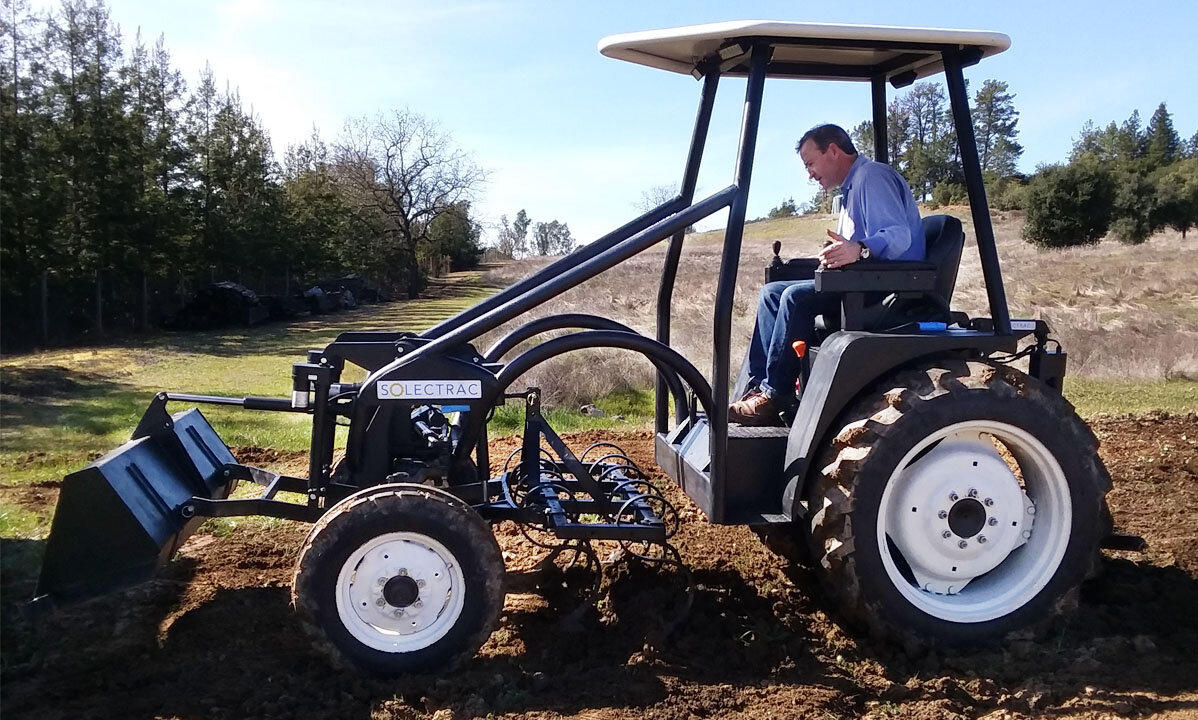

In the Field
"More powerful than my 45-HP diesel…"
Gowan Batist
Co-Owner, Fortunate Farm
CA Alliance of Family Farmers Board Member
Specifications
eFarmer offers all the capabilities of a diesel tractor and more.
- Horsepower 30 HP (22kW) Diesel Equivalent / 22HP (16kW) Power Take Off
- Low-Lift Front Loader 750 lbs Lifting Capacity
- Lifting Force 1000 Dynamic, 3000lbs Static
- MPH (Range) .01 to 25mph.
- RPM (Max) 4000
- Lifecycle 3000 at 80% Depth of Discharge
- On board battery 28 kWh
- Auxiliary Packs 28 kWh
- Voltage and Current 240 VAC - 30 A
- Service Life 80,000 hours
-
Dimensions
Length: 115”
Width: 64”
Height: 92.5”
Track: 48 - 52”
Ground Clearance (Min): 12” or 18”
Tires Front: 750 x 26 - 30.5”
Tires Rear: 12.4 x 28 - 42”
FAQs
+ When will the eFarmer be available?
The eFarmer will be available in Q4 2021.
+ When will the eFarmer be available outside North America?
We expect international availability in 2022.
+ Does the eFarmer accommodate my existing implements?
Yes. All Category I implements can be used, with the exception of those requiring hydraulics.
+ What is the purpose of the mid hitch on the eFarmer?
The mid hitch holds a tool carrier used for cultivating row crops and allows complete forward visibility of the crop being cultivated.
+What can the front hitch of the eFarmer be used for?
The front hitch on the eFarmer can be used to carry a low lift loader bucket or any other front mounted implement, such as a reaper. The front hitch is capable of lifting, moving and dumping 1,000 lbs. loads. It will be available in 2020. The loader bucket is expected to cost $1000.

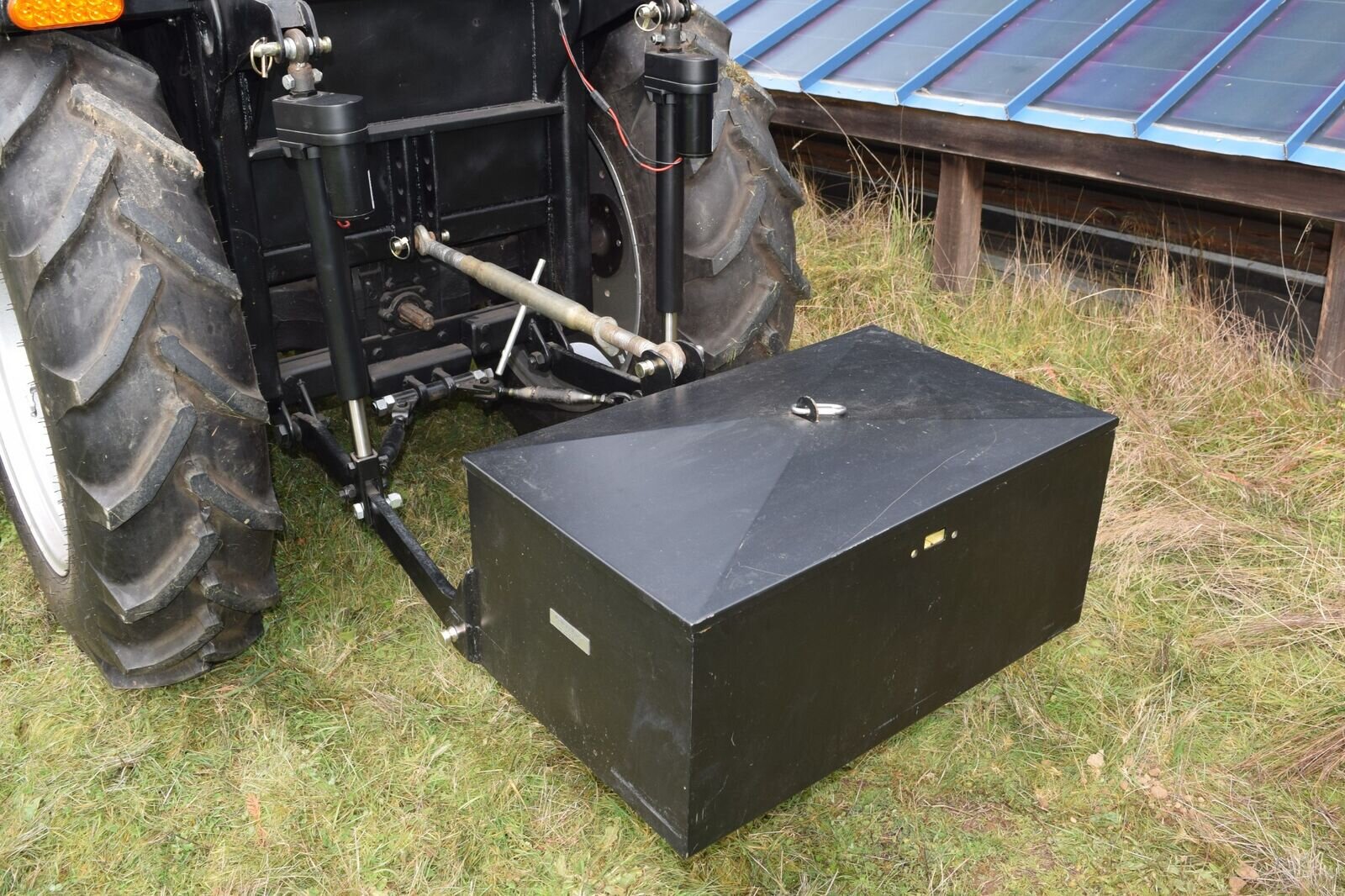

+How do you mount exchangeable battery packs on the eFarmer?
Exchangeable battery packs will be available in the 3rd quarter of 2020. The 28 kWh packs can be mounted on the rear 3-point hitch to balance the weight of the optional front loader and extend operating time. The 28 kWh packs can also be carried on the mid or front hitch to balance the weight of heavy implements mounted on the rear hitch and extend operating time.
+Can the eFarmer be adjusted for different track width applications?
The eFarmer front and rear wheel track can be adjusted from 44” to 68” on center in 4” increments for working on beds from 30” to 48” in width.
+Why aren’t you using hydraulics for the hitches?
We are using linear actuators on the 3 hitches because they are 20 times more efficient than hydraulics and require no toxic fluids.
+How long do the batteries last?
10 years pending operating cycles and depth of discharge (DOD). 3,500 cycles @ 80% DOD
